About this product


Pre-order "Please allow 10-20 working days for delivery of this version"

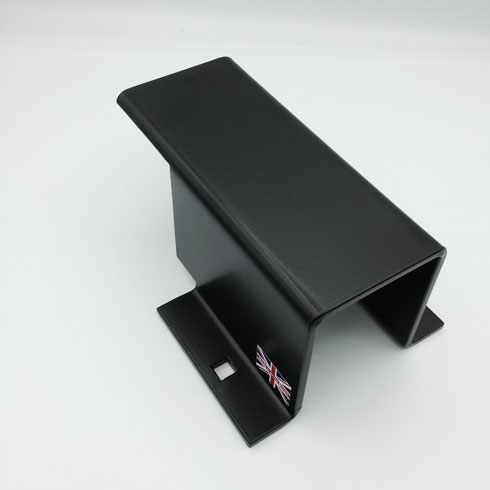

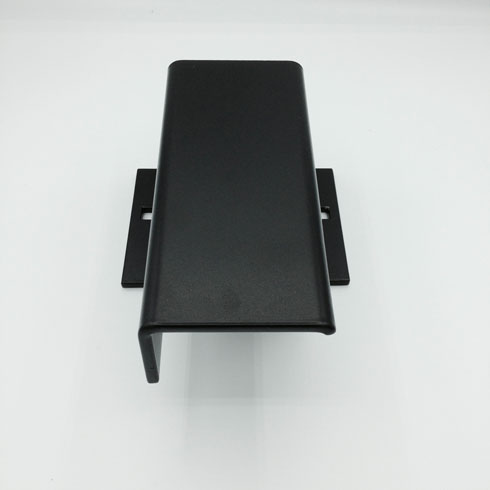

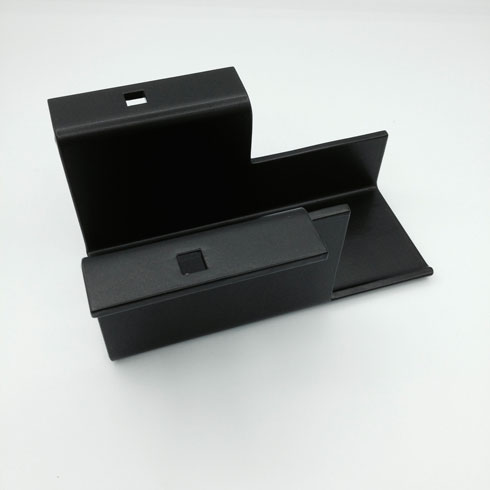

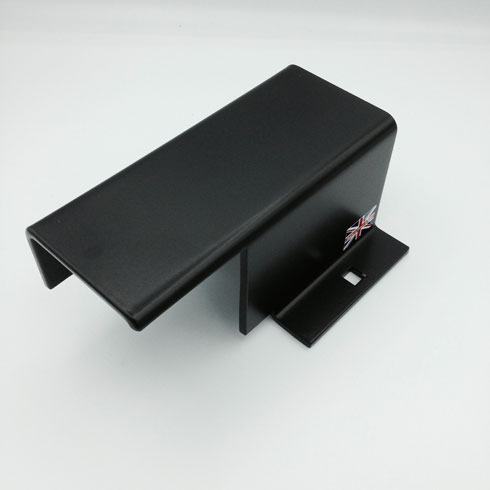

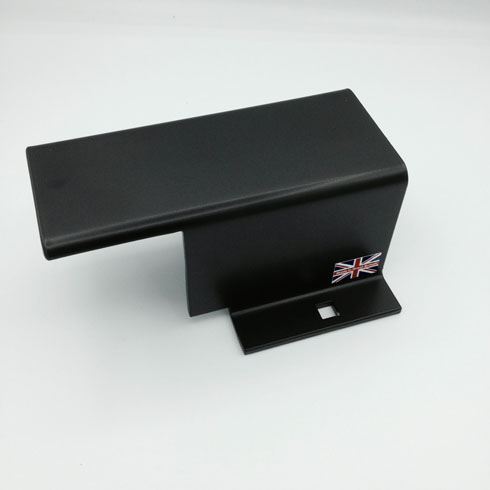

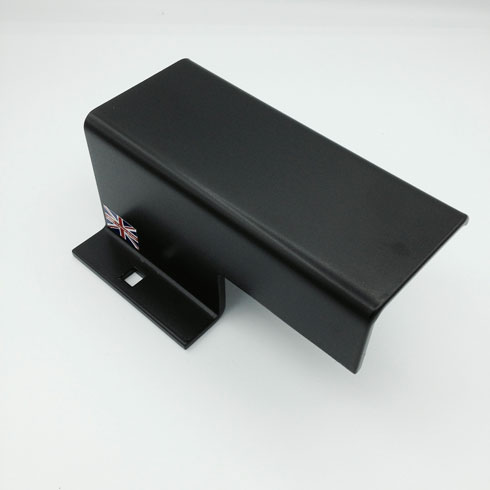

Mark 7-T "left side anti lift version" suitable for right hinged timber gates fitted with 19 mm adjustable hook and band hinges internal or external opening with gate flush with post, one way opening and gate vertical support beam at least 100 mm wide.


Mark 7-T "left side anti lift version" suitable for right hinged external timber or metal doors as a protective shield for padlock hasp and staple.


Patent Pending


Dimensions


Length cover plate 195 mm x flange length 105 mm x width 141 mm x external depth 95 mm x internal dimension 75 mm x thickness 5 mm "all dimensions +/- 5%"


Key features


  • Restricts 125 mm cordless angle grinder attack.
  • Restricts bolt cropper attack.
  • Cover plate for padlock to restrict shackle attack.
  • Cover plate for hasp and staple to restrict hacksaw attack.
  • Cover plate for 19 mm adjustable band to prevent tampering.
  • Cover plate for hook to prevent removal of gate.

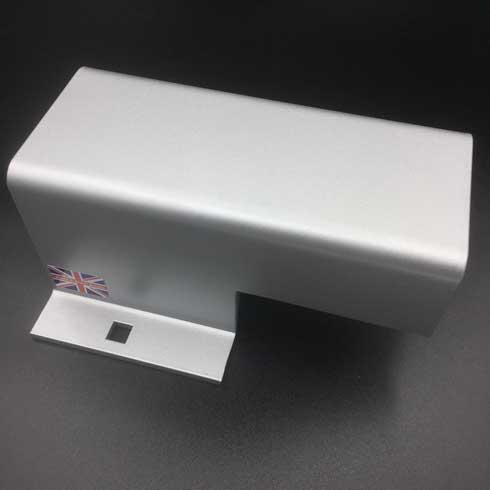

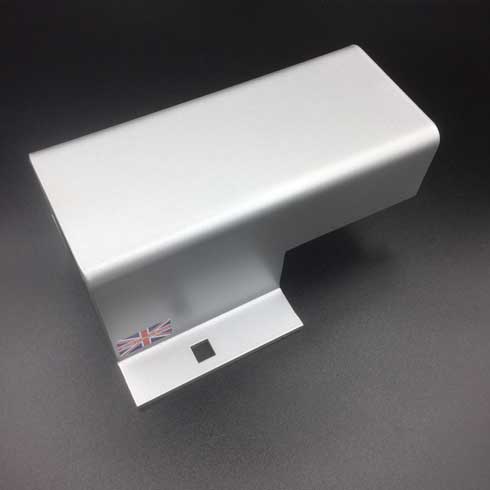

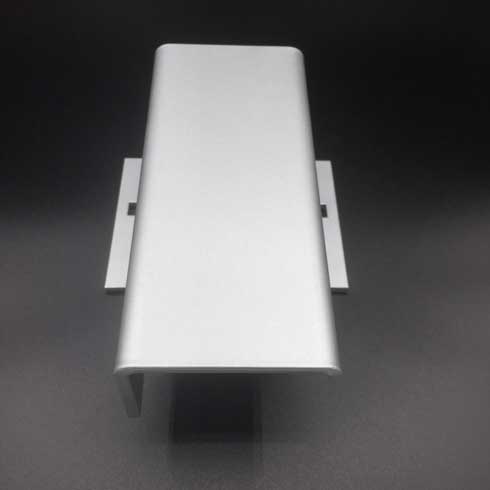

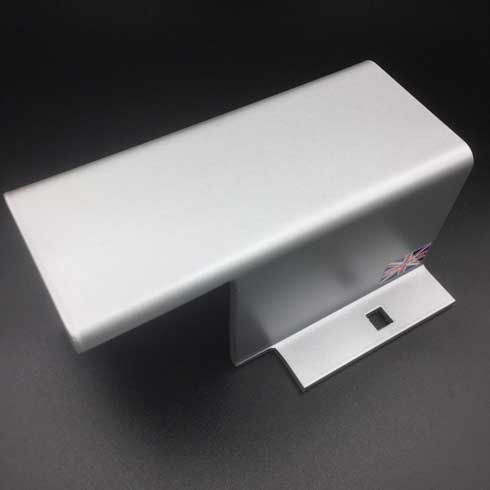

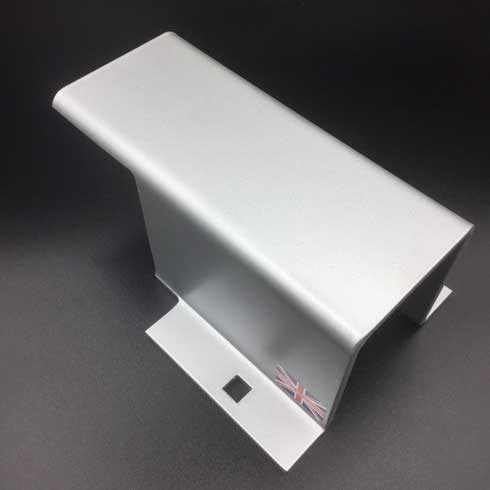

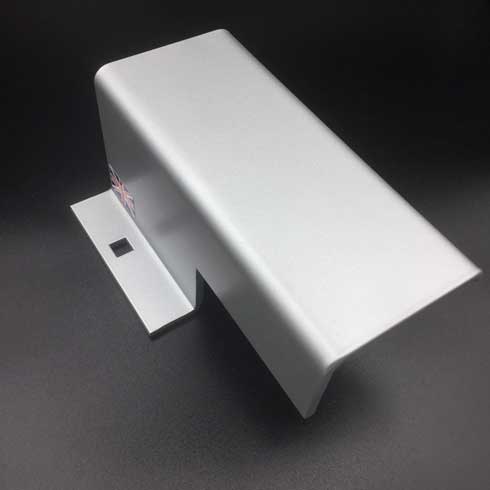

  • Powder coated BLACK "Not SILVER as illustrated"
  • Zinc plated steel construction for long continuous use.
  • Padlock cover shield for external timber doors.

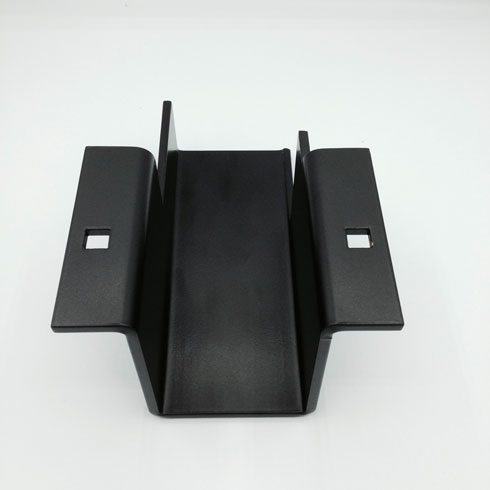

  • Two 10 mm squared holes for fitting bolts through the gate or door main vertical supporting beam.

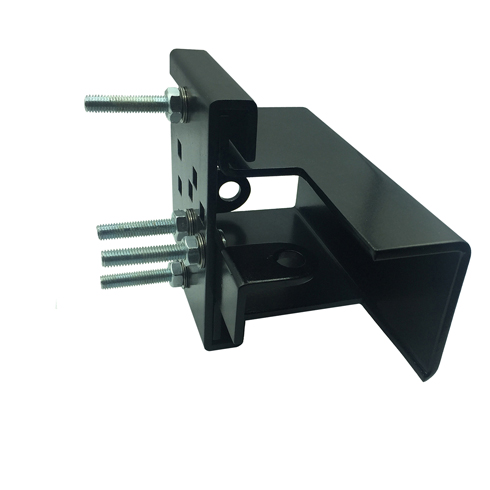

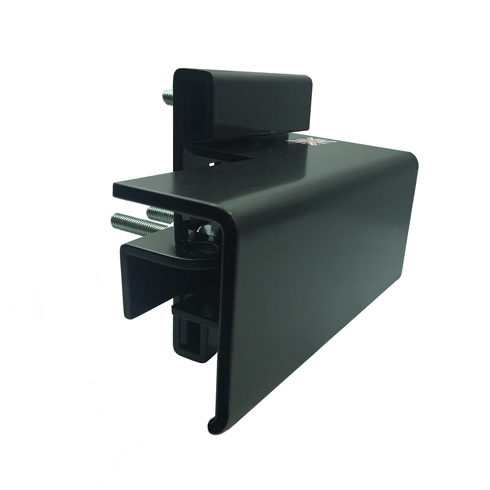

  • Optional Mk3 Hasp staple base kit for full bolt head concealment.


Fitting product for use as a padlock hasp and staple cover plate only


  • Position cover plate central between hasp and staple on the door or gate with front flange edge flush with edge of door or gate.
  • Mark the centre positions of the 2 x 10 mm squared holes from the left and right flanges of the cover plate onto the door or gate.
  • Drill 2 x 10 mm holes and insert 2 x M10 coach bolts through the 2 x 10 mm squared holes on cover plate.
  • Inside the room secure with 2 x M10 nuts.

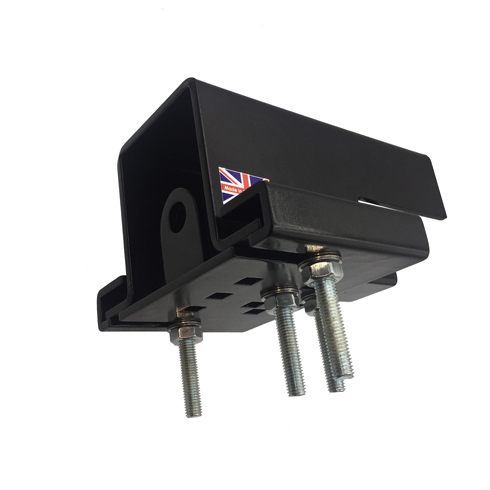

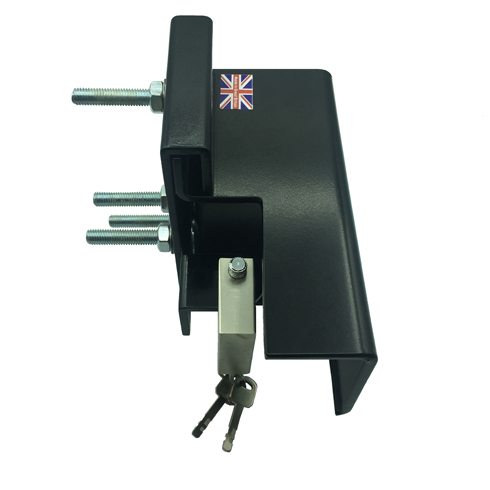

Fitting product for use as a padlock hasp and staple cover plate "Full Kit Version"


  • Position cover plate on door or gate with front flange edges flush with edge of door or gate.
  • Mark the centre positions of the 2 x 10 mm squared holes from left and right flanges of the cover plate onto the door or gate.
  • Drill 2 x 10 mm holes and secure base plate onto the door with front edge flush with edge of door.
  • You can choose from vertical positioned or horizontal positioned for the hasp and either central positioned or close to anti lift plate.
  • Mark the 2 required 10 mm holes positions for the hasp onto the door or gate then remove and drill your 2 x 10 mm holes.
  • Remove base plate and refit cover plate loosely with 2 x M10 coach bolts leaving 5-7 mm gap for sliding back on the base plate.
  • Fit hasp onto base plate with 2 x M10 coach bolts then tighten all 4 bolts from within the room or other side of gate.
  • With door closed place staple under front of hasp section and mark the out-line of staple edge holding in place whilst opening the door.
  • Mark positions of the 2 x screw holes and M10 hole onto door frame or gate post.
  • Drill the 10 mm hole and 2 x 4.2 mm holes and secure with your M10 countersunk Allen socket bolt and screws.
  • Fit the padlock shackle through hasp and staple and your room is now secure.

Fitting product for use as a adjustable hook & band cover plate


  • Position cover plate central between the adjustable band.
  • Slide cover plate so that anti lift plate reaches the furthest point of the main support block which supports the hook to the flat mounting plate.
  • If possible leave a 10-20 mm gap between the bottom of the hook and top of anti lift plate.
  • Mark the positions of the 2 x 10 mm squared holes from the left and right flanges of the cover plate onto the gate or door.
  • Drill 2 x 10 mm holes and push through 2 x M10 coach bolts through the cover plates 2 x 10 mm squared holes.
  • Secure with 2 x M10 anti tamper shear off nuts on the other side of the gate or 2 x M10 nuts on door installations.



For more info call us: 07847 511 968 Between 9.00am-6.00pm Monday-Sunday.




Click this link to view Mk7-T 2 Page User Manual



Click this link to view Mk7-T Brochure



Click this link to view Fitting Demonstration Video



versions

Mk7-T LSA Standard colour BLACK

0007C-BK-L-2-2
£49.99

Mk7-T LSA Plus Mk3 Hasp staple base kit Standard colour BLACK FULL KIT

0007C-BK-L-2-2-K
£79.99
