About this product

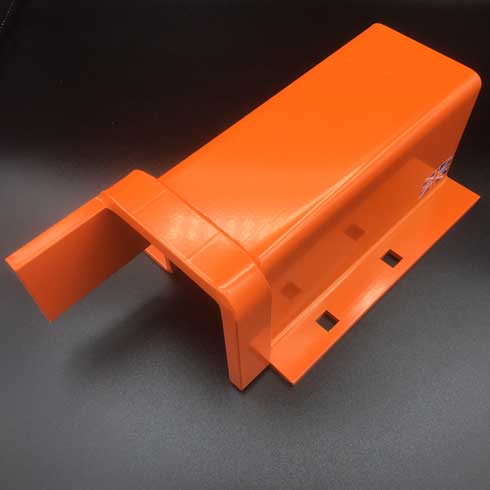

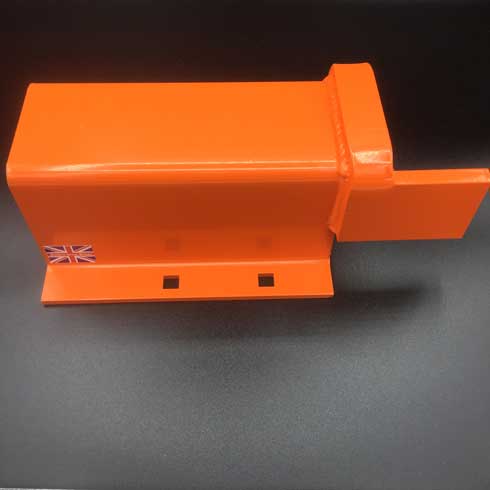

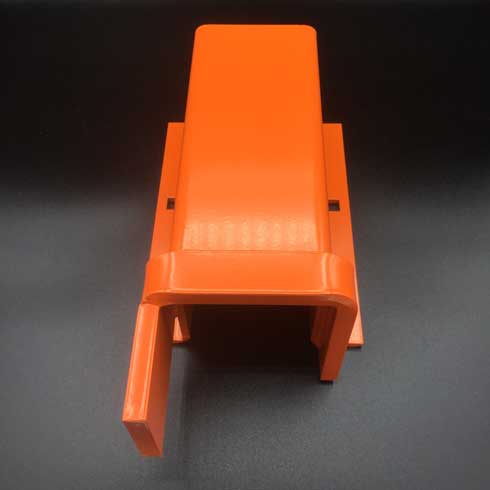

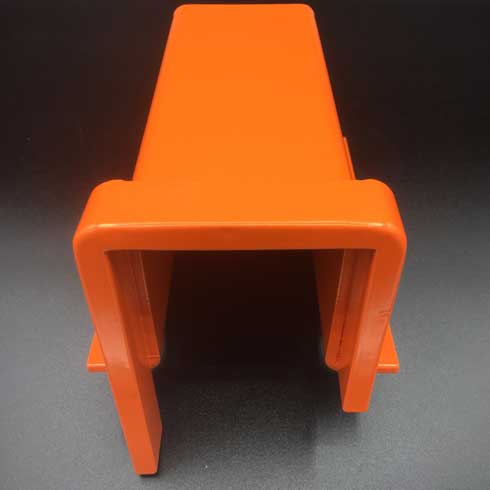

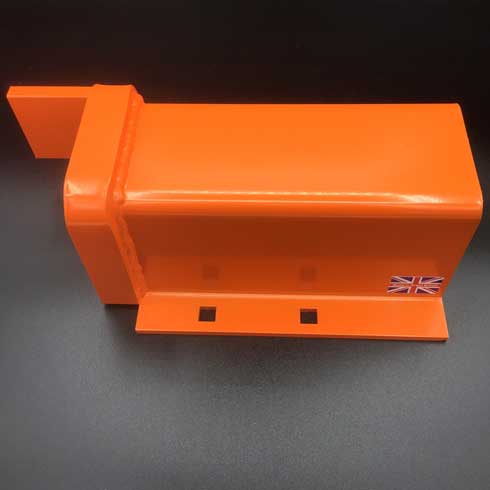

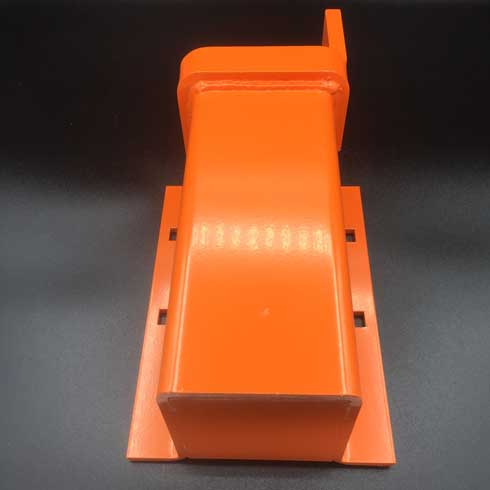

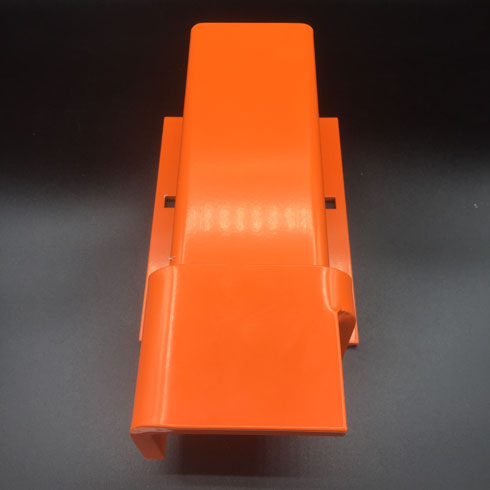

Mark 5 "left side anti lift version" suitable for right hinged gate with 19 mm adjustable hook and band hinges internal or external opening with gate flush with post, one way opening and gate vertical support beam at least 141 mm wide.


Dimensions

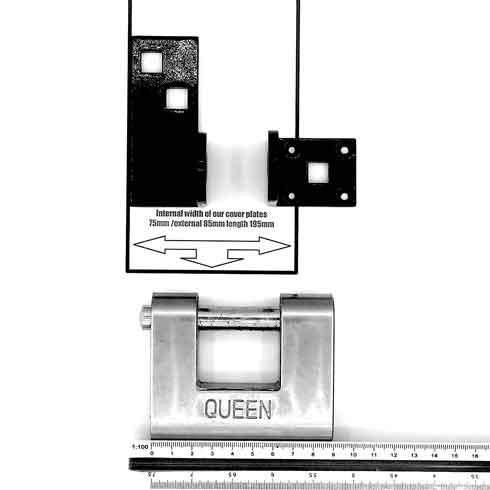

Length cover plate 195 mm + 80 mm anti lift plate x width 141 mm x external depth 105 mm x internal dimension 75 mm x cover plate thickness 5 mm x anti lift plate thickness 10 mm "all dimensions +/- 5%"


Key features


  • Restricts 125 mm cordless angle grinder attack.
  • Restricts bolt cropper attack.
  • Restricts crowbar attack.
  • Restricts sledgehammer attack.
  • Prevents gate being lifted off the hinges.
  • Cover plate for adjustable 19 mm band to restrict tampering.
  • Cover plate for hook to restrict removal of gate.
  • Highly visible orange powder coated finish.
  • Zinc plated steel construction for long continuous use.


How to fit cover plate


  • Position cover plate central between the adjustable band.
  • Slide cover plate so that anti lift plate reaches the furthest point of the main support block which supports the hook to the flat mounting plate.
  • If possible leave a 10-20 mm gap between the bottom of the hook and top of anti lift plate.
  • Mark the positions of the 4 x 10 mm squared holes from the left and right flanges of the cover plate onto the gate.
  • Drill 4 x 10 mm holes and push through 4 x M10 coach bolts through the cover plates 4 x 10 mm squared holes.
  • Secure with 4 x M10 anti tamper shear off nuts on the other side of the gate.



For more info call us: 07847 511 968 Between 9.00am-6.00pm Monday-Sunday.



Video Demo: Click this link to view video demonstration Mk5



Video Demo: Via Vimeo Platform



versions

Mk5 (c) 4tress4gates Standard colour RAL 2004 PURE ORANGE

0005C-0R-L
£39.99
