Mk7-T LSA plus Mk2 hasp and staple kit
About this product
Pre-order "Please allow 10-20 working days for delivery of this version"

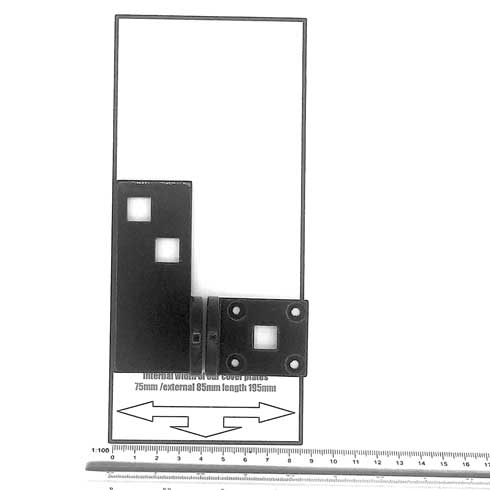

Mk7-T LSA and Mark 2 Hasp and Staple kit.
Suitable for padlock shackles up to 15 mm thick.
Mark 7-T "left side anti lift version" suitable for right hinged external timber or metal doors as a protective shield for padlock hasp and staple.
Dimensions
Hasp Length 87 mm x width 40 mm x height 50 mm x thickness 5 mm x shackle hole 16 mm "all dimensions +/- 5%"
Staple Length 50 mm x width 35 mm x height 50 mm x thickness 5 mm x shackle hole 16 mm "all dimensions +/- 5%"

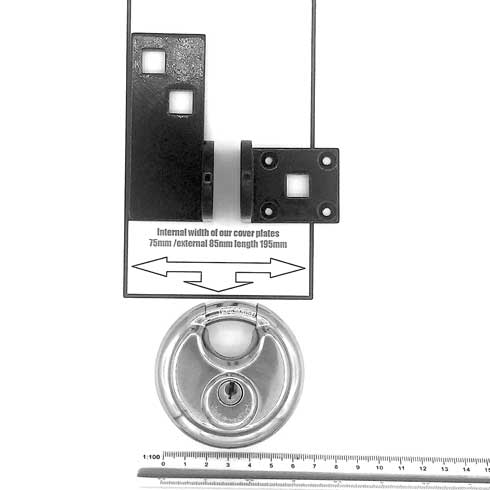

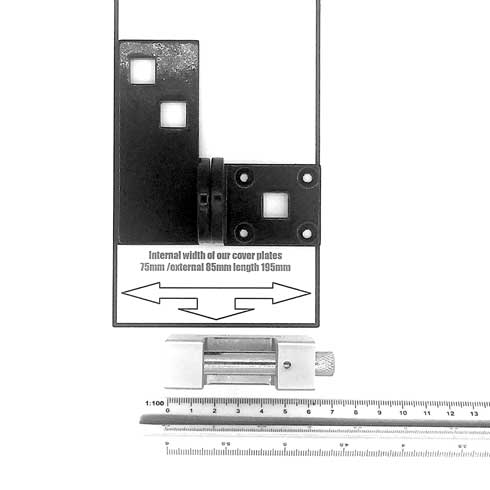

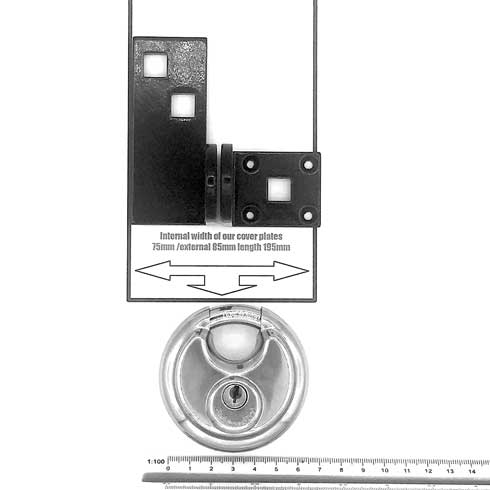

Cover plate Length 195 mm x flange length 105 mm x width 141 mm x external depth 95 mm x internal dimension 75 mm x thickness 5 mm "all dimensions +/- 5%"
Patent Pending
Key features
Vertical elevation or horizontal for your choice of padlock.
For any shackle up to 15 mm thick.
Secured with our standard M10 coach bolts and 4 screws.
16 mm shackle hole allows you to find your own suitable padlock shackle.
Separated shackle and hasp design allows the padlock to be properly supported on the door frame.
M10 coach bolts are hidden within our optional cover plates when purchase with this product.
Zinc plated steel construction for long continuous use.
Formed shaped Lazer cut 5 mm thick steel without any welding which provides extra strength to attacks.
Two 10 mm squared holes for fitting bolts through the gate or door main vertical supporting beam.

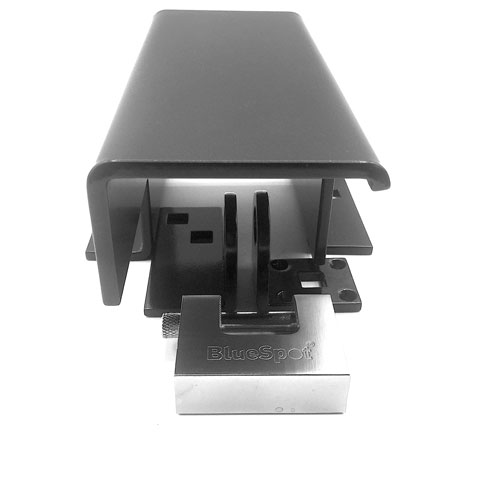

Optional cover plate available for total protection.

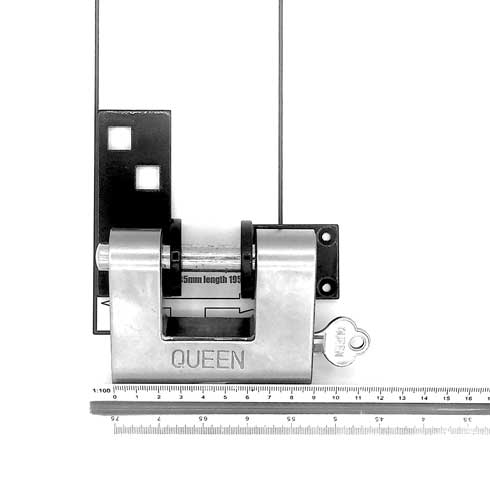

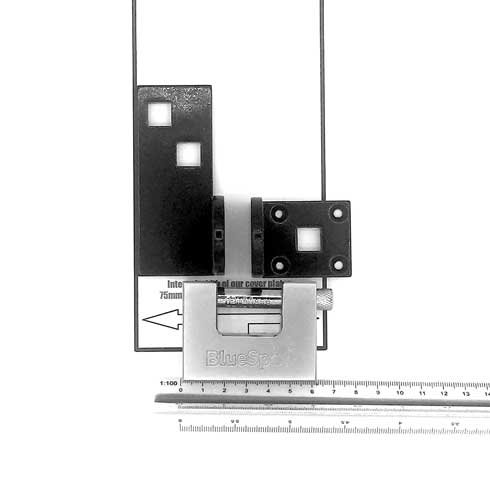

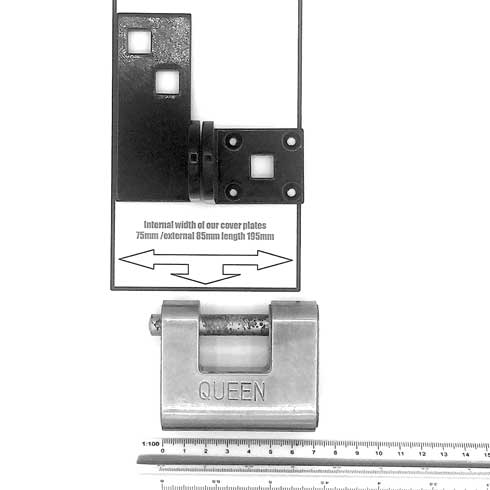

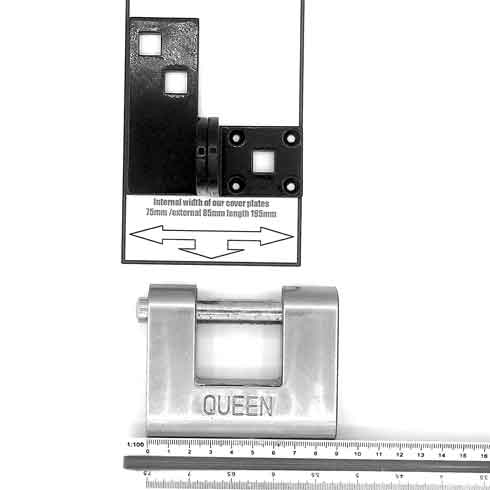

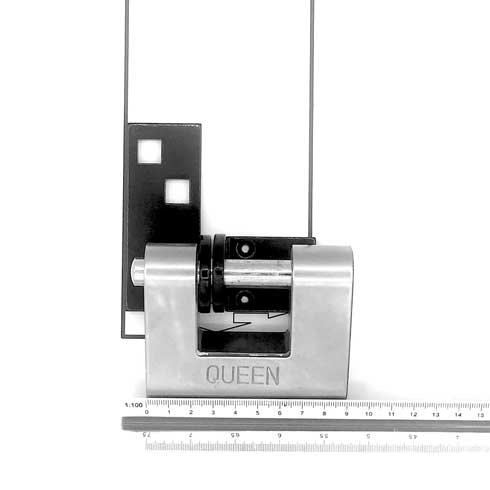

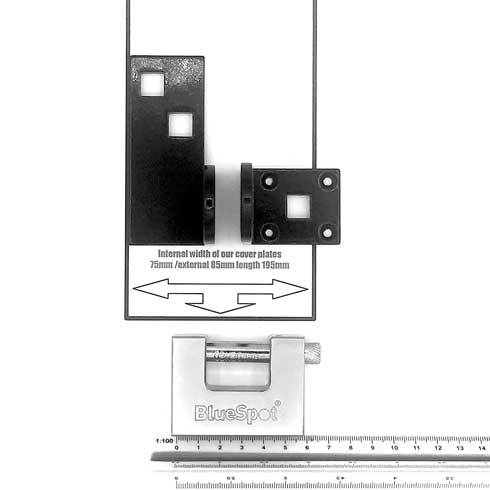

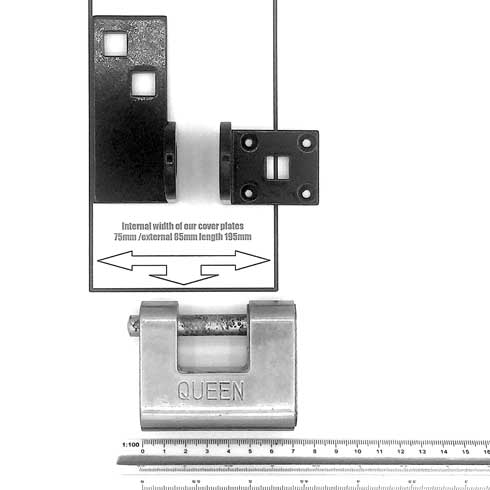

Fitting for Shrouded type padlocks
Close door and position Hasp vertically on door frame with shackle section at east 3 mm away from the edge of door frame "check door opens"
Close door and position Staple on door in-line with Hasp on door frame with at least 3 mm gap between the two component "check door opens"
Fit your shrouded padlock.
Cover with Mk7-T cover plate.

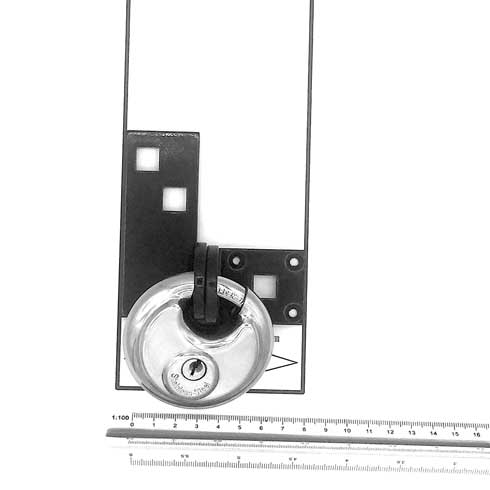

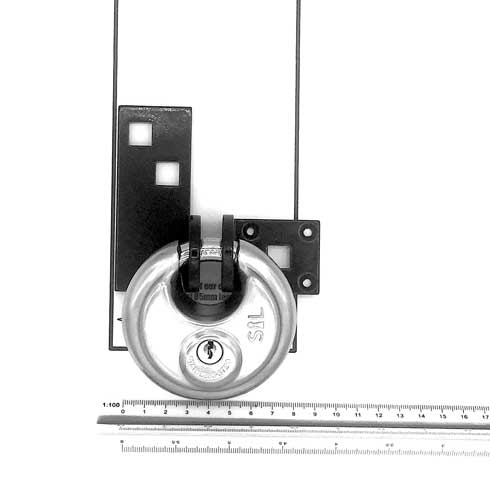

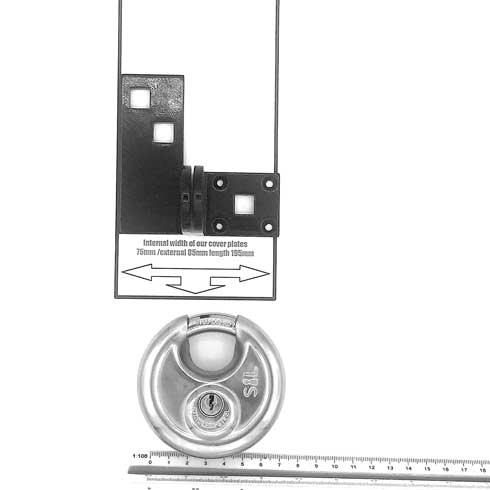

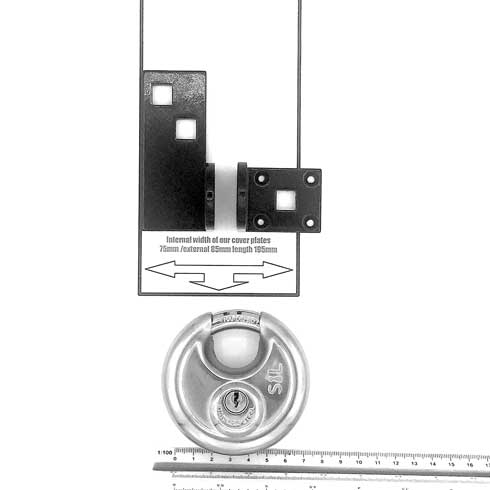

Fitting for Discus and Container type padlocks
Close door and position Staple on door frame with shackle front left edge section at least 3 mm away from edge of door frame "check door opens"
Close door and position Hasp on door in-line with Staple on door frame with at least 3 mm gap between the two components "check door opens"
Fit your Discuss or Container type padlock.
Cover with Mk7-T cover plate.
Click this link to view Mk7-T 2 Page User Manual
Click this link to view Fitting Demonstration Video
